Motivation
Introduction
Pursuit-evasion tasks require a robot to find
one or more evaders in its environment, or to verify
that the environment contains no evaders.
We can think of this as a sort of robotic “hide-and-seek” game.
In the bigger picture, this problem is a good example of how
to design an algorithm to solve a nontrivial problem, for which
the robot's uncertainty is a central part of the problem.
Who cares?
Good solutions to pursuit-evasion problems could be useful for:- Patrolling a museum.
- Finding the “bad guys.”
- Finding victims in disaster situations.

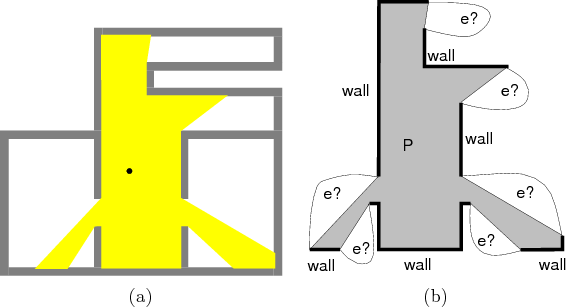

The problem

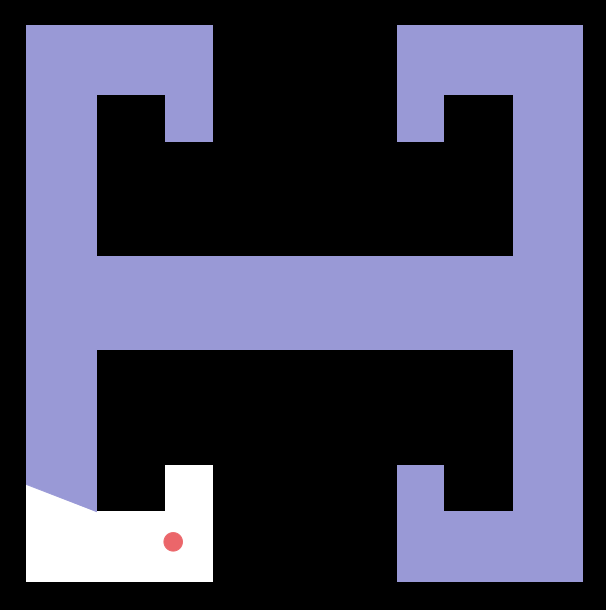

A pursuer robot moves within a range sensor in a known, polygonal, planar, simply-connected environment. Its goal is to see an evader that moves arbitrarily quickly.

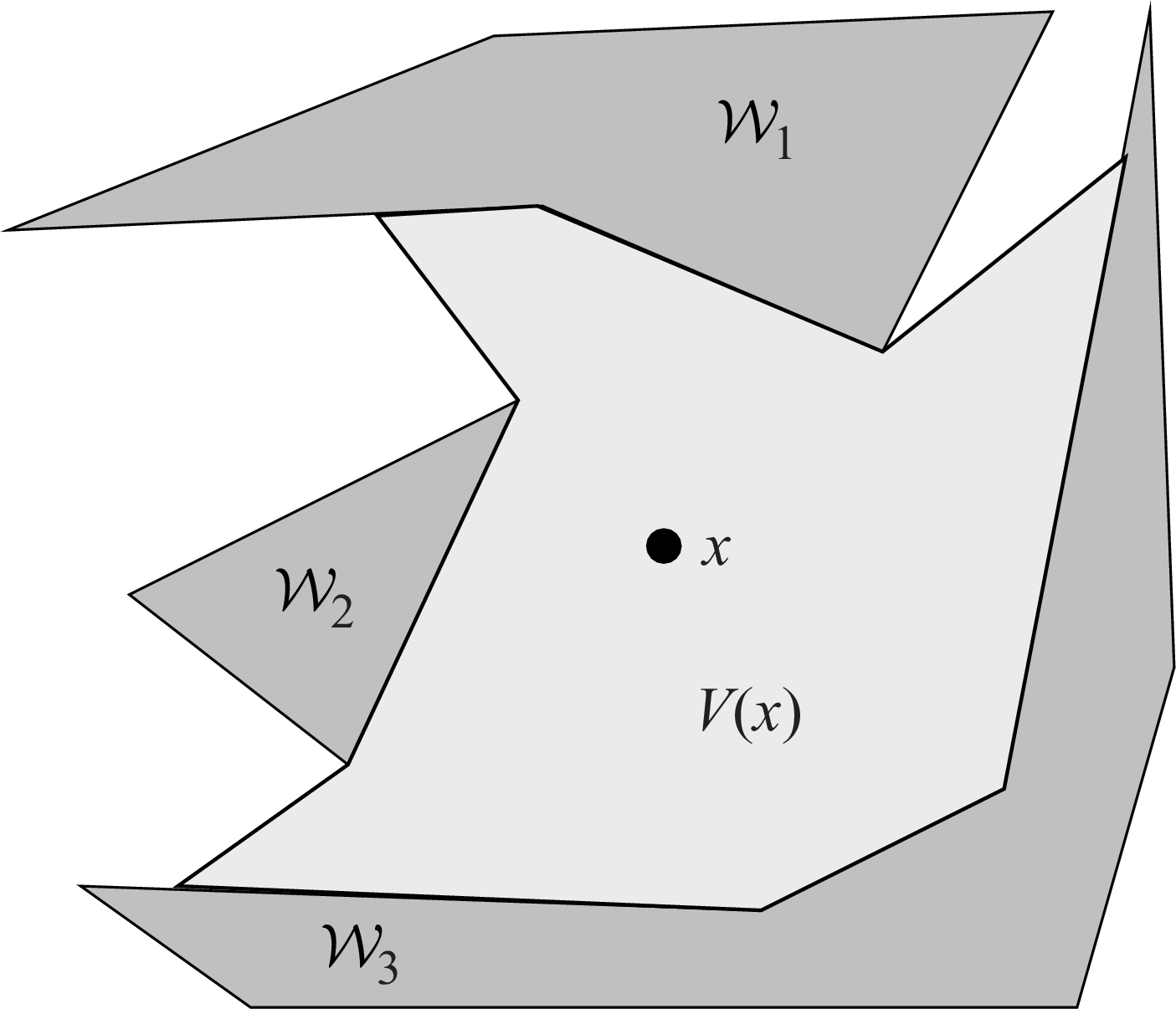

Gaps and labels

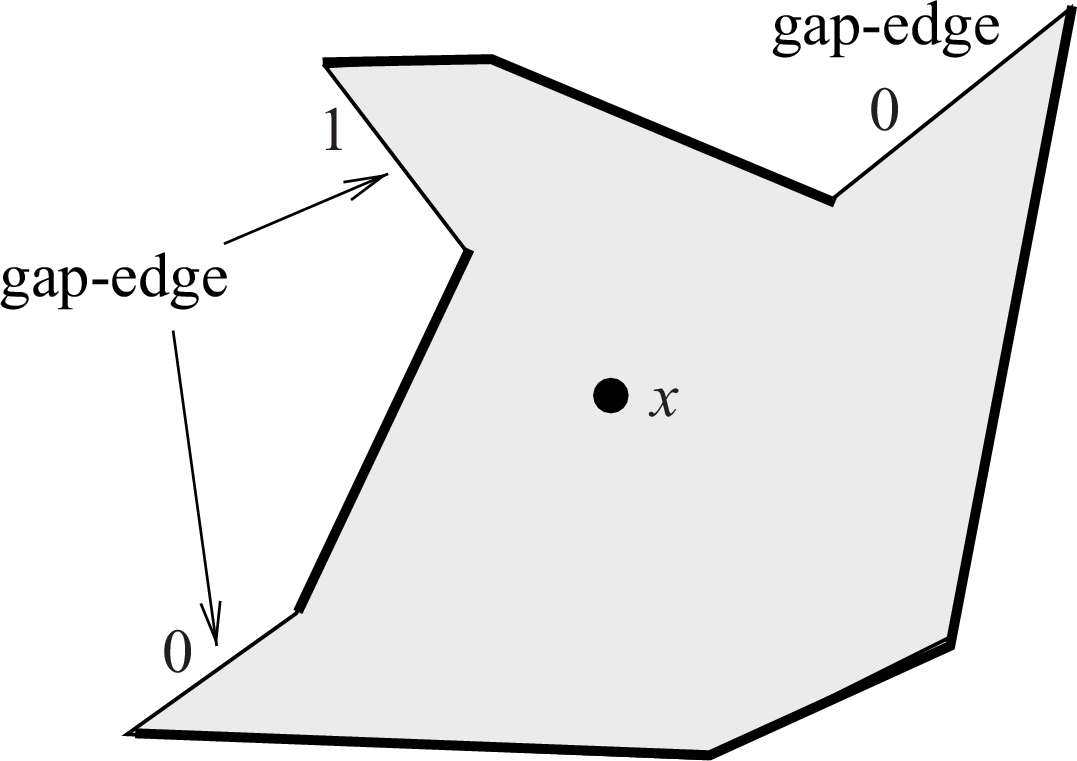

We can divide the boundary of pursuer's visibility polygon into boundary edges and gap edges.
Label each gap edge:
- If evaders might be hiding behind the gap edge, the gap is contaminated, labeled 1.
- If we are certain no evaders are hiding behind the gap edge, the gap is clear, labeled 0.
What does the pursuer know?
We can completely describe the pursuer's knowledge using these labels on the gap edges.
Gap changes
How can the gaps change as the purser moves?- A gap can disappear.
- A new gap can appear.
- A gap can split into two gaps.
- Two gaps can merge.

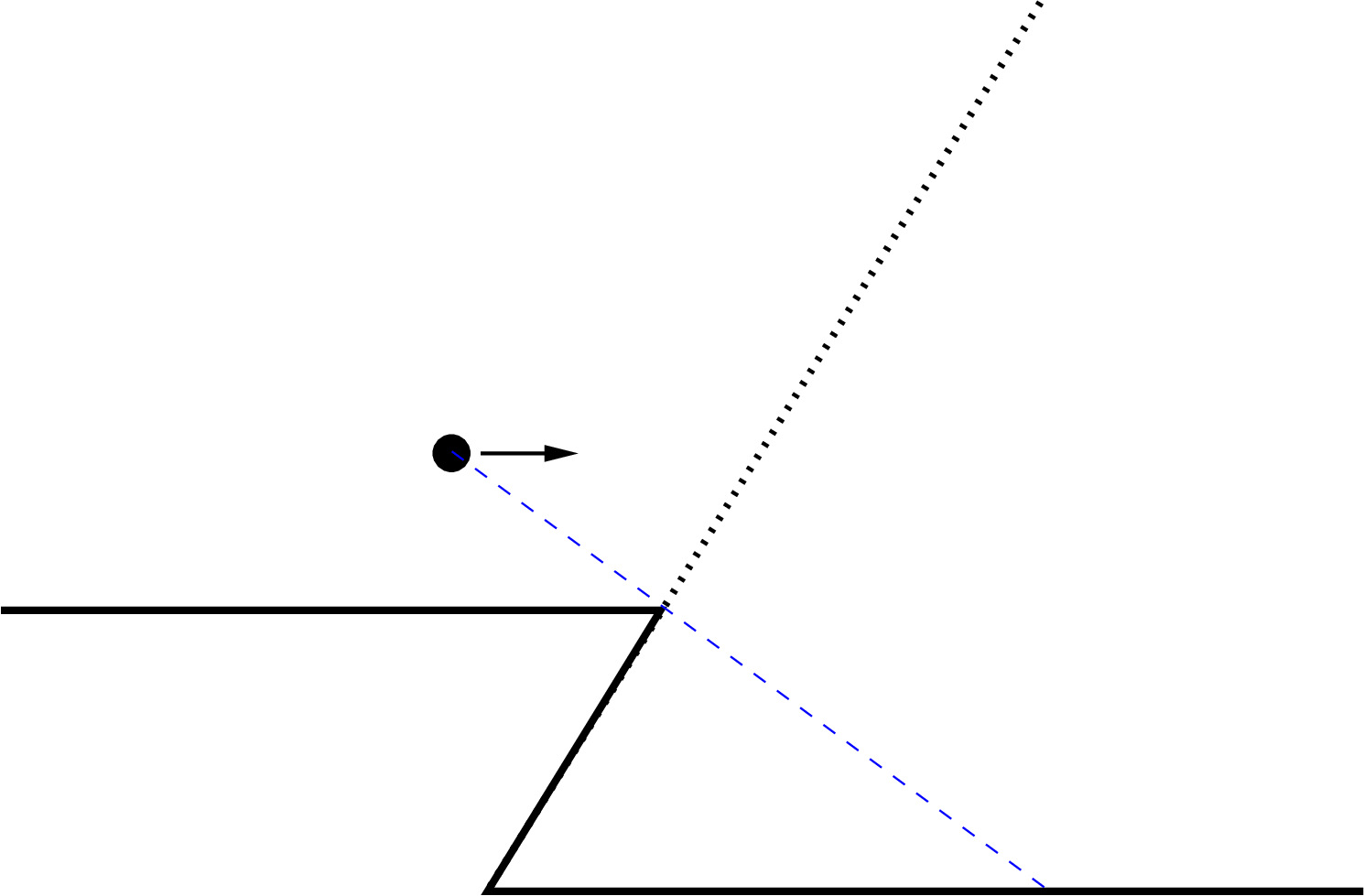

Disappear
Appear

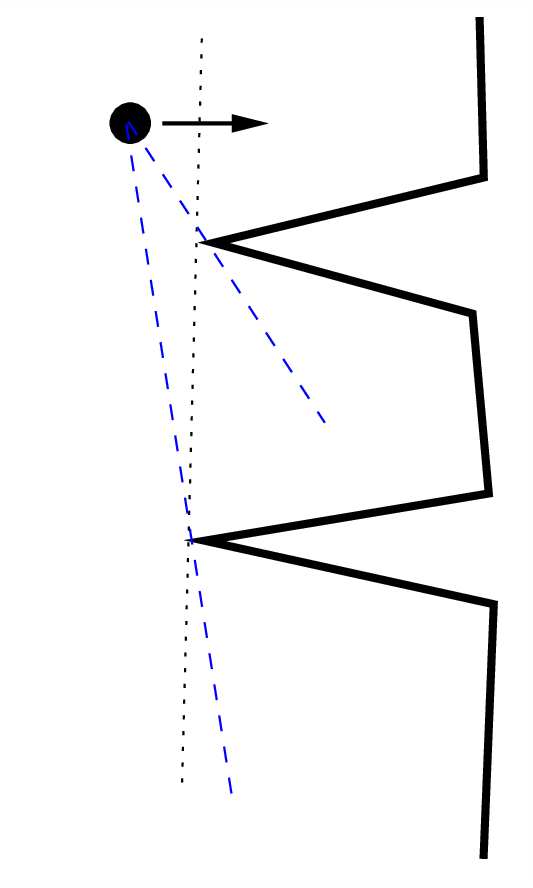

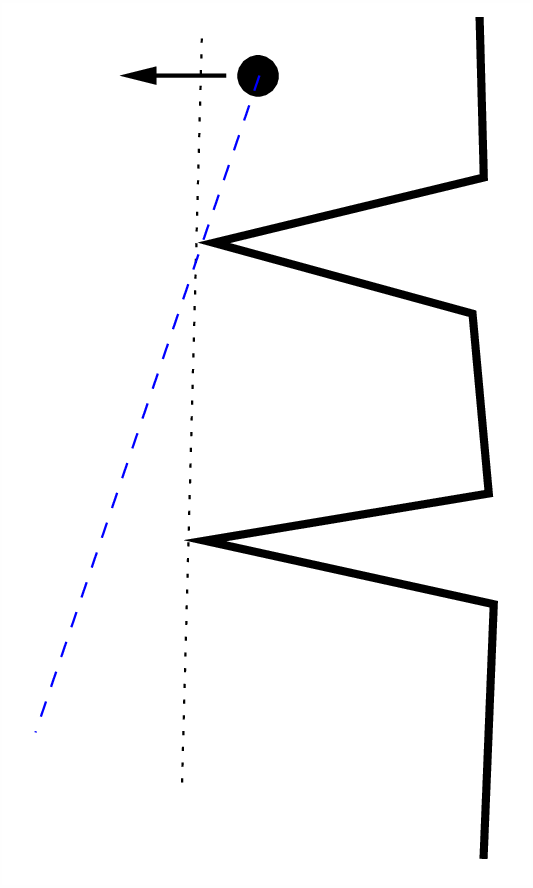

Split
Merge

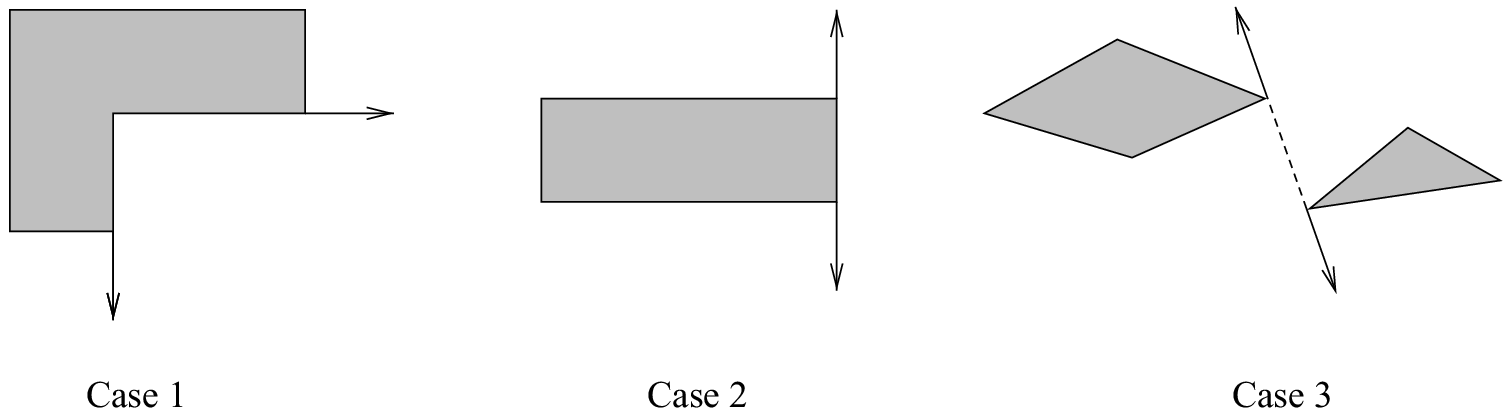

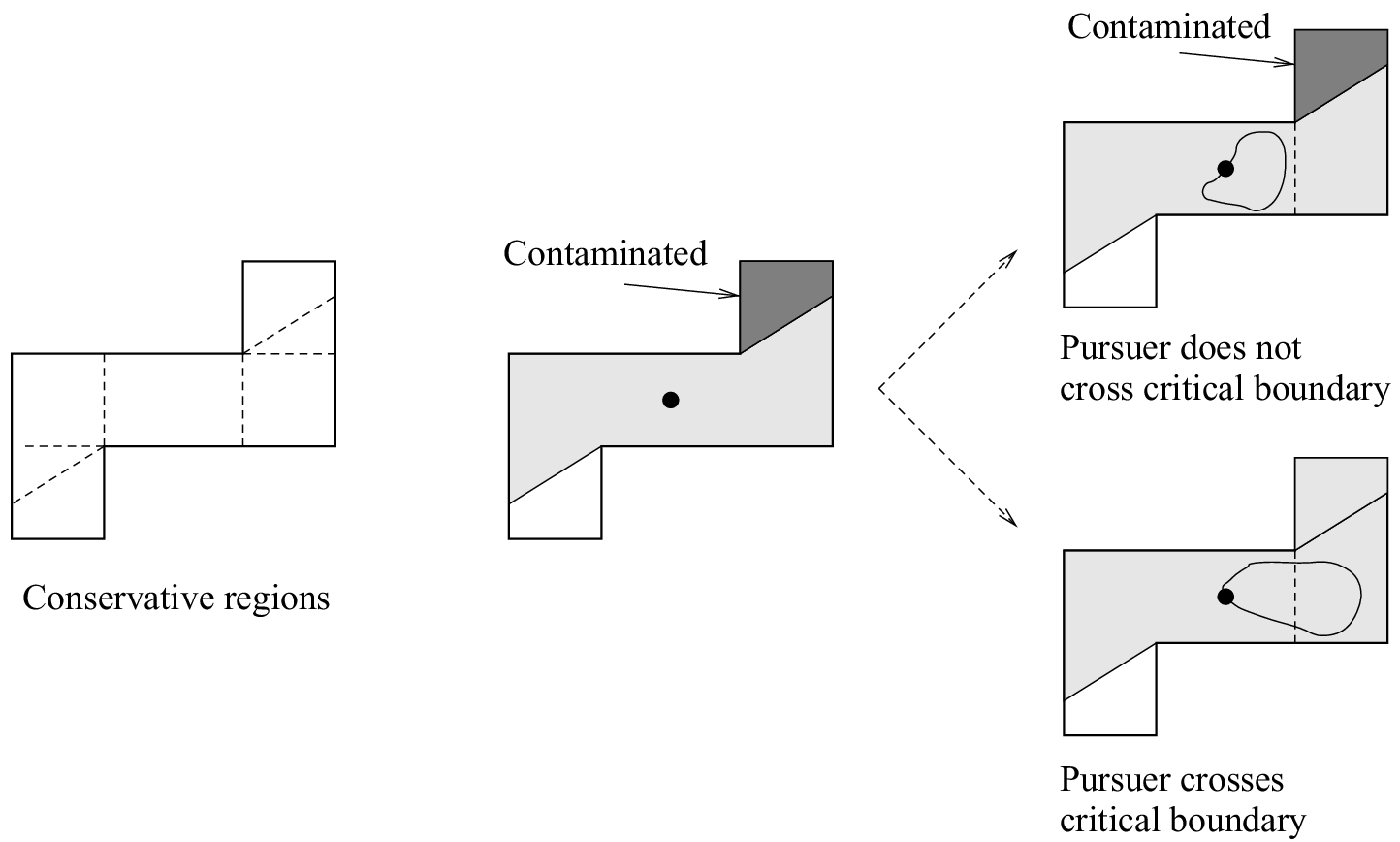

Conservative regions
Unless it crosses one of the boundaries from the previous slides, the pursuer's gaps and labels remain the same. The regions between these boundaries are called conservative regions because the robot can move freely through each cell without changing its knowledge. To divide the environment into conservative regions, draw rays:- outward from the incident edges of each reflex vertex.
- outward from each pair of mutually visible reflex vertices.
The information graph
To solve the problem, we can form an information graph.
- Each node is a conservative region combined with a labeling of the
gaps for this region.
- If a conservative region has $n$ gaps, there are $2^n$ nodes associated with it.
- Each edge is a directed transition between conservative regions, updating the labels appropriately.
- From the starting node labeled with all 1's.
- Find a path to any node with labeled with all 0's.

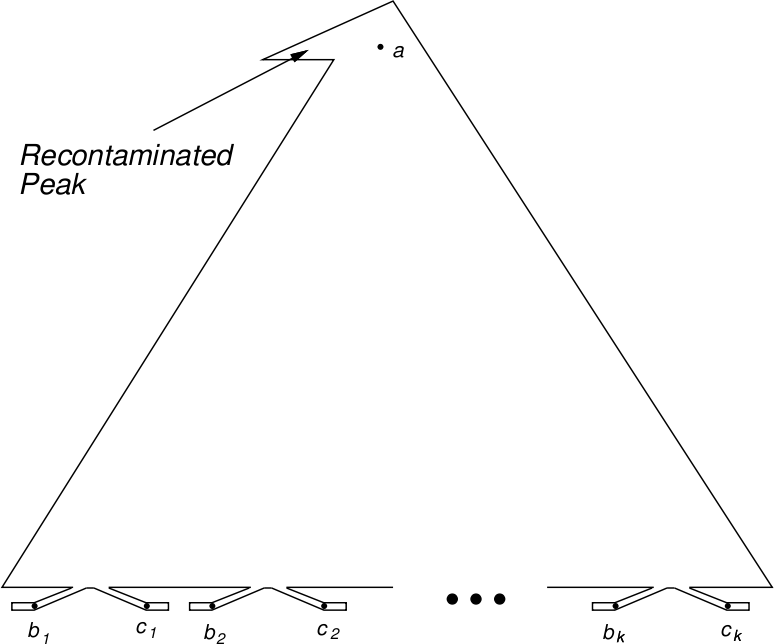

Extreme example: Multiple recontaminations
