Introduction

Localization is the problem of determining and tracking the robot's position, relative to a map of its environment.

The histogram filter is a localization algorithm that maintains an estimate of the robot's state, expressed as collection of probabilities for individual cells.

The particle filter is a localization algorithm that maintains an estimate of the robot's state, expressed as collection of samples.

These filters are:

passive
local
probabilistic

a book cover titled "Probabilistic Robotics"

Basic idea of probabilistic localization

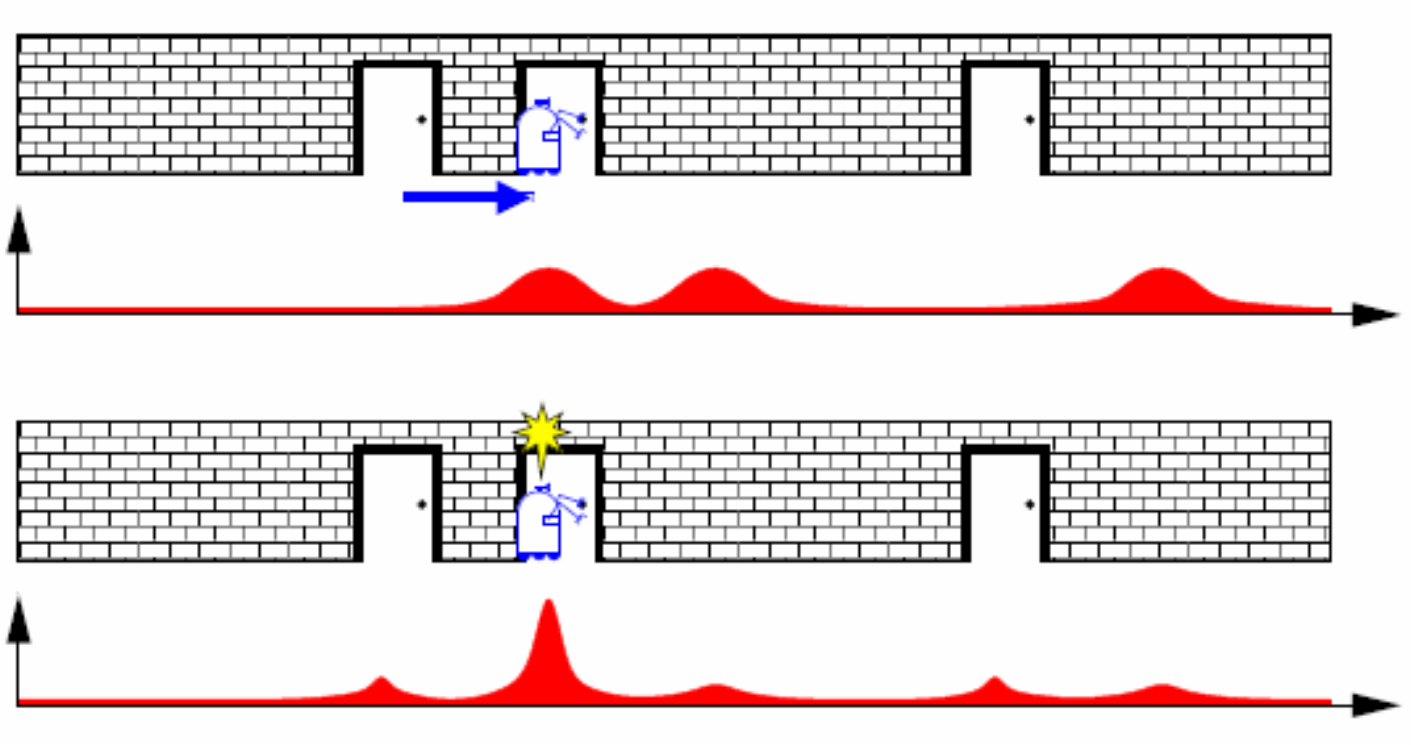

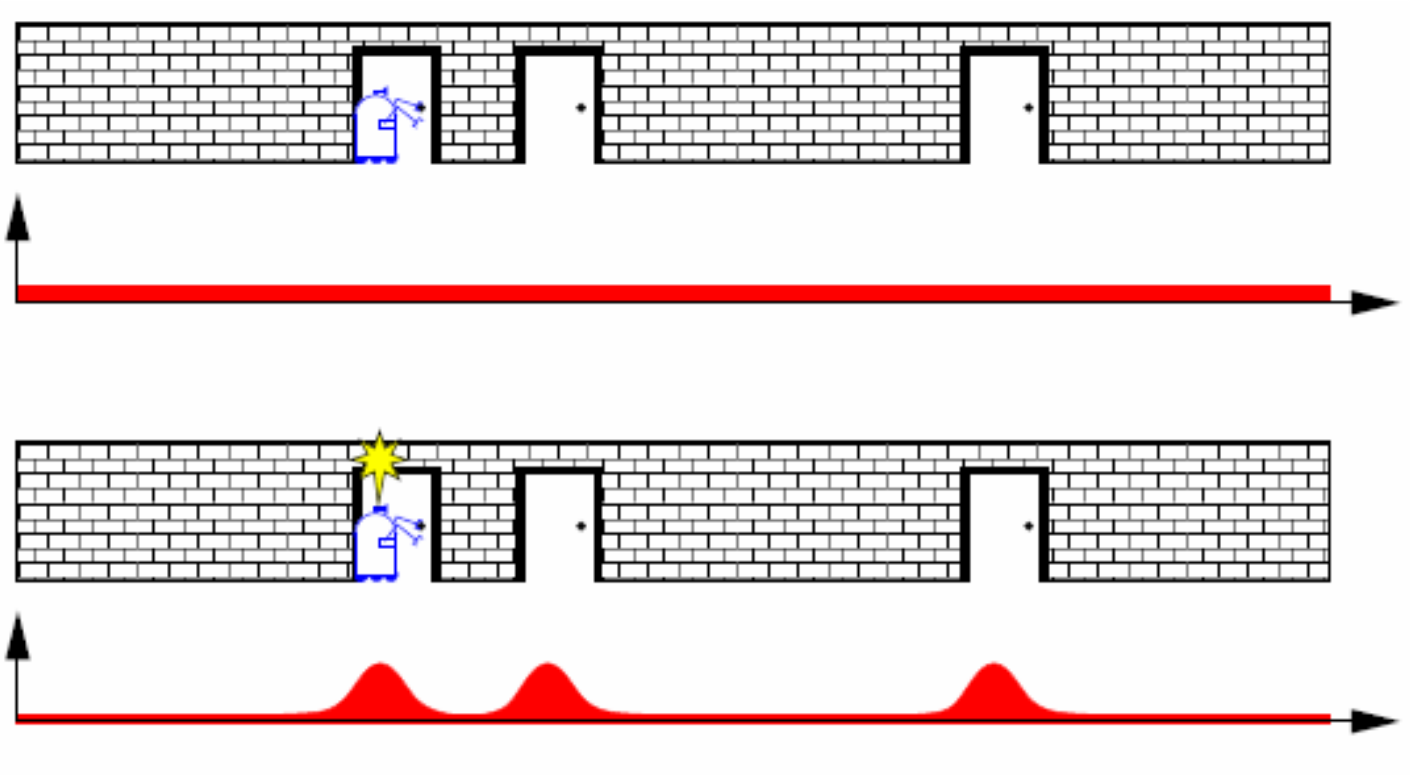

a robot moving along a hallway with several doors

Probabilistic models

Recall the state transition function: \[ x_k = f(x_{k-1}, u_{k-1}, \theta_{k-1}) \] and the observation function \[ y_k = h(x_k, \psi_k). \]

If errors are random, we can express the same information using conditional probabilities:

Transition model: $P(x_k \mid x_{k-1}, u_{k-1})$
Observation model: $P(y_k \mid x_k)$

Using probabilities this way, we can avoid explicitly mentioning the noise values.

Posterior distribution

Recall that the goal of probabilistic localization is to keep track of q a probability distribution over the state space, given the history: \[ P(x_k \mid u_1,\ldots,u_k, y_1,\ldots,y_k) \] This is sometimes called the posterior distribution.

Knowing this distribution provides an answer to the question “Where am I?”, especially if the probability mass is concentrated around one state.

Posterior updates

We can get an update equation for the posterior distribution using Bayes rule, along with marginalization: \sm{ \begin{multline*} P(x_k | u_1, \ldots, u_{k-1}, y_1, \ldots, y_k) = \alpha_k P(y_k \mid x_k) \sum_{x_{k-1} \in X} \left[ P(x_k | x_{k-1}, u_{k-1}) P(x_{k-1} \mid u_1,\ldots,u_{k-2},y_1,\ldots,y_{k-1}) \right] \end{multline*}}

Here, $\alpha_k$ is a scaling factor to ensure that the probabilities add up to 1. It's used to make the equation simpler, instead of giving an explicit expression.

All probabilistic methods for robot localization start from this idea, or something similar.

This applies only when the state space is discrete. (Note the summation over all states.) An analogous version can be derived using probability density functions and integration rather than summation.

Missing parts

The previous page doesn't tell us:

How to represent the transition distribution.
How to represent the observation distribution.
How to represent the posterior distribution.

We need to fill these details to get a complete algorithm.

Transition distributions

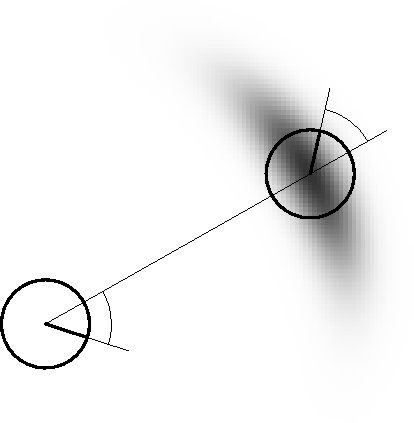

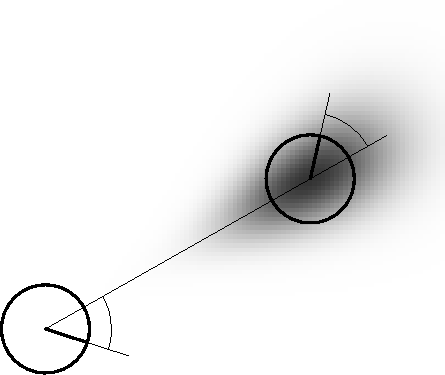

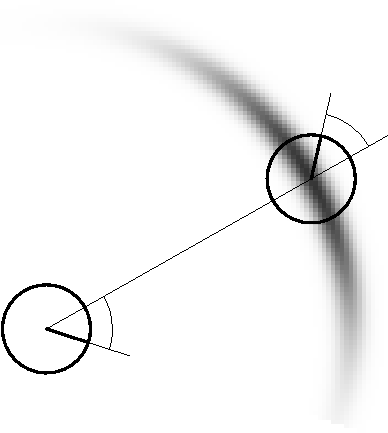

Example: Assume errors occur in rotation and translation separately.

Observation distributions

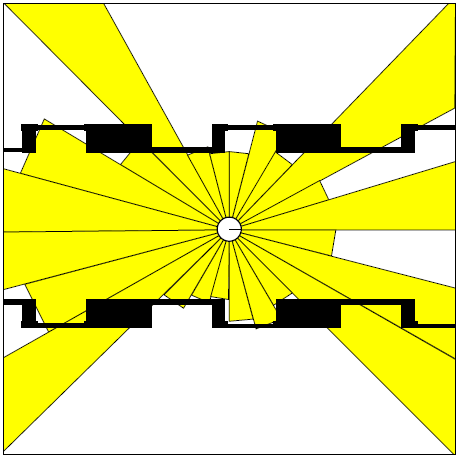

Example: Range sensor. Sources of error: noise, crosstalk, reflections, dynamic obstacles (e.g. people), maximum range, etc.

Posterior distributions: Histogram filter

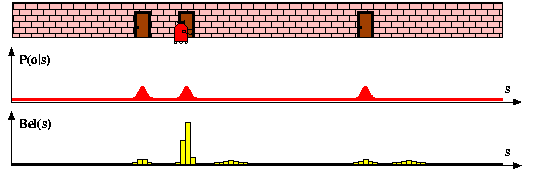

One option: Histogram filter

Make a finite collection of cells.
Track the probability for each cell.
Use the update equation directly.

We can think of this as using a piecewise constant probability density function.

Posterior distributions: Particle filtering

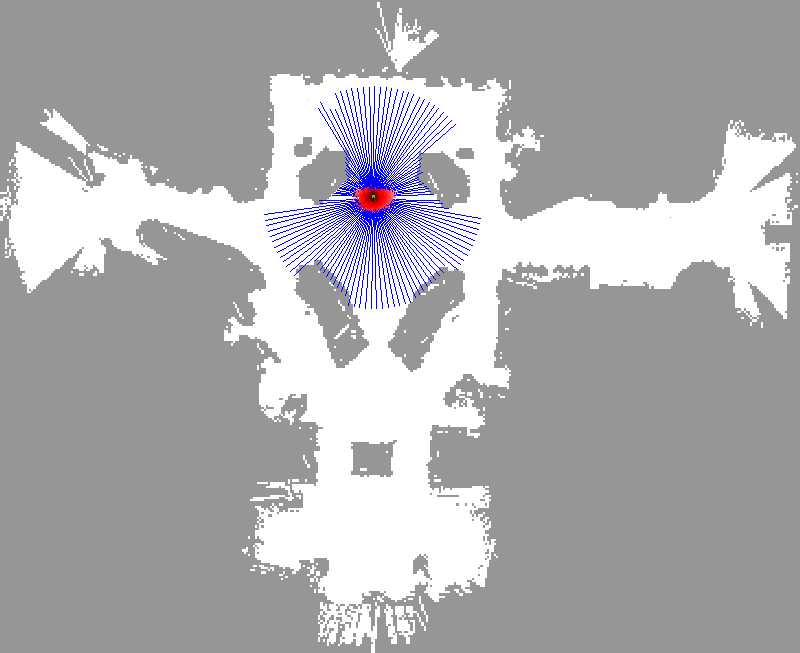

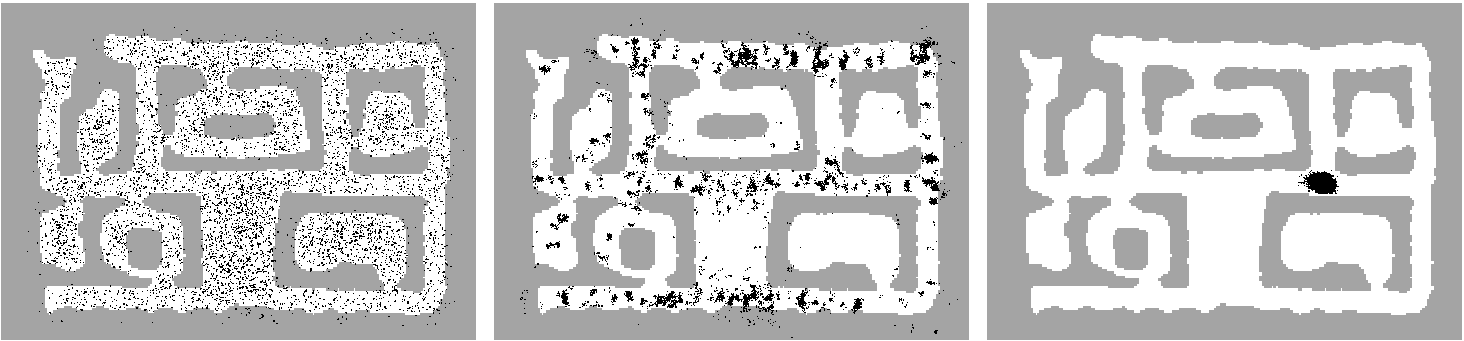

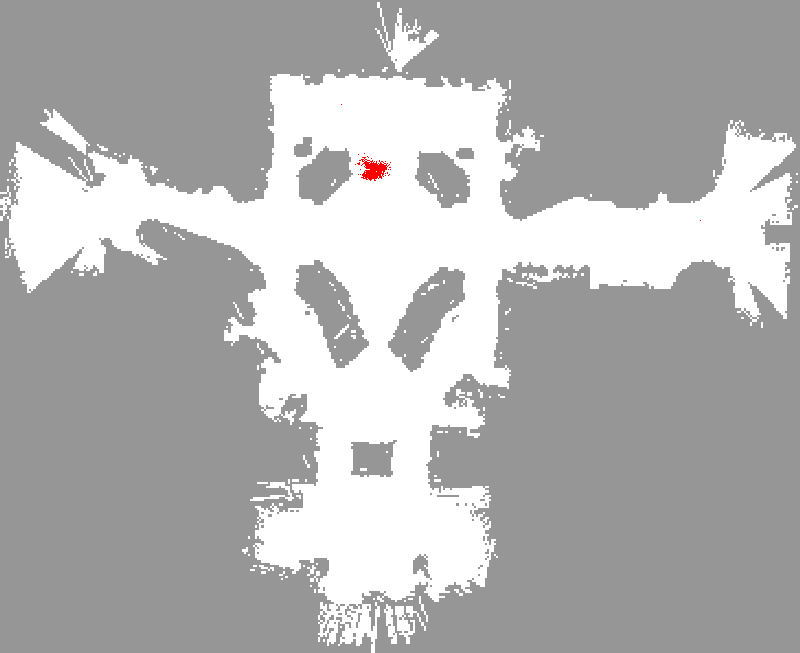

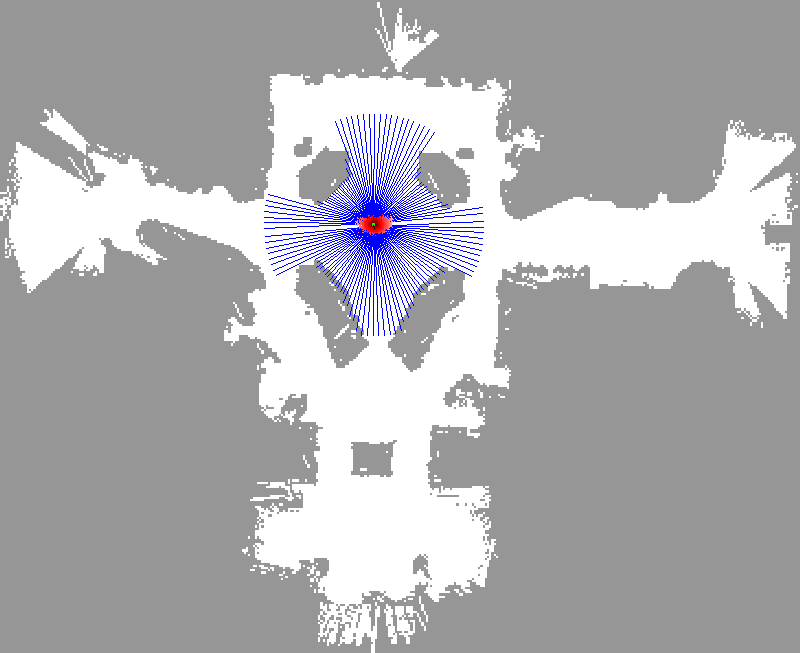

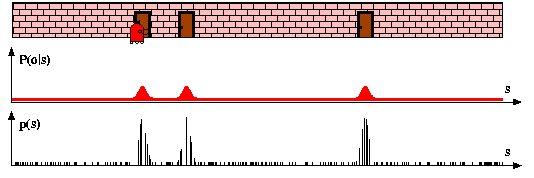

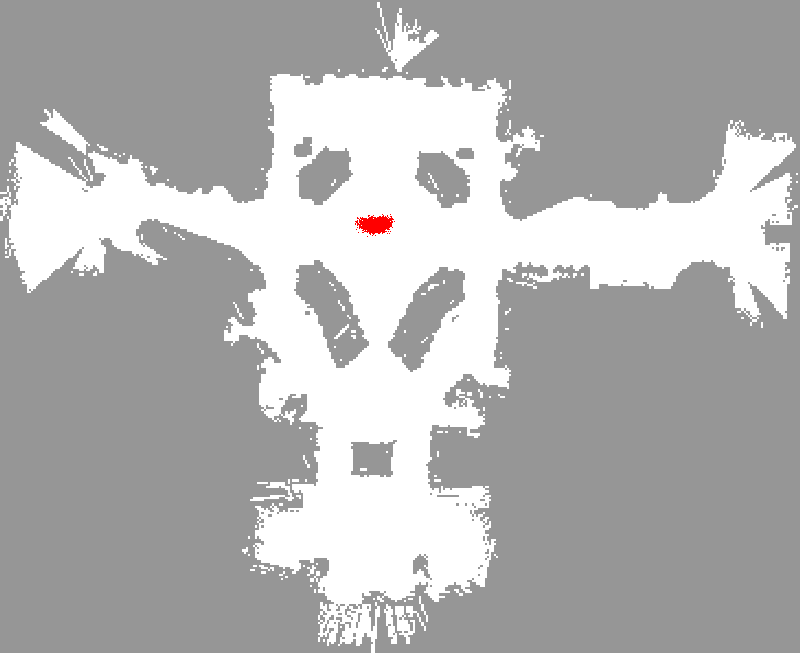

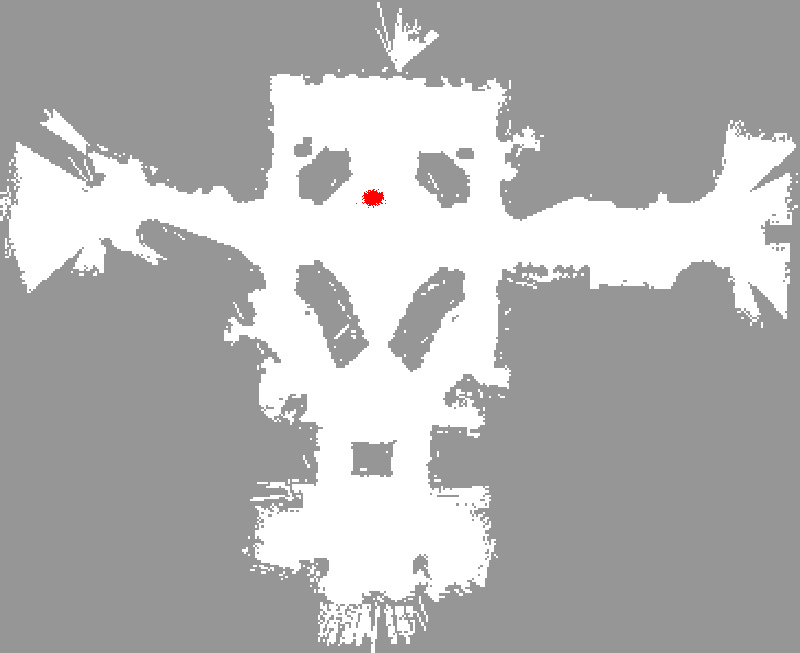

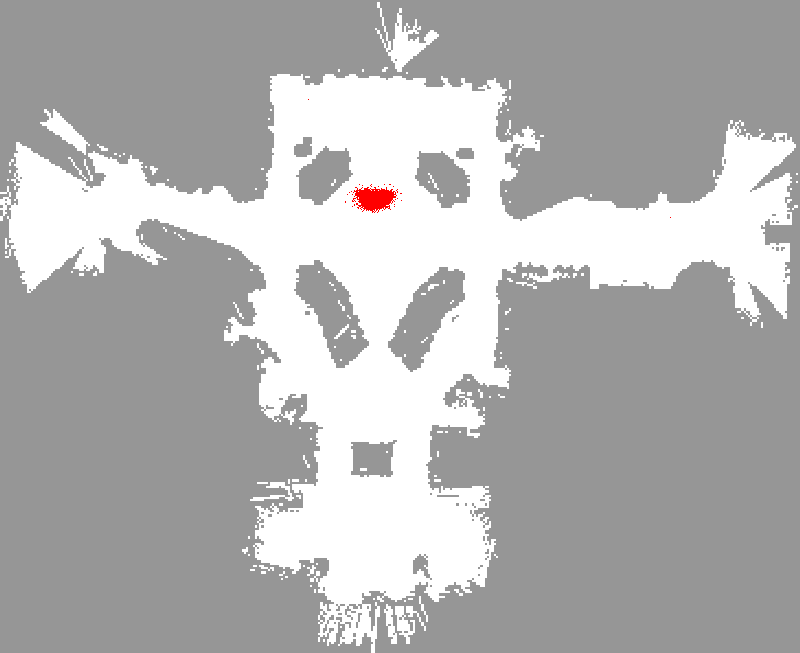

Example: Particle filter

Track a finite set of samples, called particles, each with a state $x$ and a weight $\omega$.

A major advantage is that this makes it straightforward to concentrate our efforts on relevant parts of the state space.

Particle filter: Initialization

Start with a set $\chi$ of $M$ particles based on the robot's initial knowledge. Each particle is a single state.

Particle filter: Actions

When an action $u_k$ is executed, update $\chi$ via forward projection.

For each particle $\left(x^{(m)}_{k-1}, \omega^{(m)}_{k-1}\right)$ in $\chi_{k-1}$, choose a state at random according to \[ P(x_k | x^{(m)}_{k-1}, u_k).\]

Particle filter: Observations

When an observation $y_k$ is received, assign weights the particles.

One simple weighting approach: The weight of a particle at $x_k^{(m)}$ is proportional to: \[ P(y_k | x_k^{(m)}) \] Key idea: Particles more consistent with the observation get higher weights.
