Overview
Definition
Navigation is the process of moving a robot through
its environment to a goal state while avoiding obstacles.Key Question 1
How do each of these algorithms work?
Key Question 2
What are the differences in when each of these algorithms can be
applied?
Bug algorithms
Introduction
Definition
Bug algorithms are a general class of navigation
algorithms that do not require the robot to know the obstacles
ahead of time.
- No long-range sensing.
- No detailed representations of the obstacle shapes.
Vladimir J. Lumelsky, the inventor of the classic Bug
algorithms, described the idea this way:
In general terms, the problem of sensor-based motion
planning can be seen as one of reaching a global goal
using local means.
(Lumelsky, 56)
Details about Bug algorithms are in Chapter 2 of the
Choset textbook.Motivating problem: Finding the Eiffel Tower
Sensor model
Bug algorithms assume that the robot has some combination of sensors that allow it to perform two basic actions:- Sense the direction and distance to the goal.
- Follow nearby obstacle boundaries and measure the distance traveled.
An optimistic but incorrect algorithm
Here's a first crack at solving the problem:- Move toward the goal until reaching an obstacle.
- Follow obstacle boundary until it's possible to move directly toward the goal.
- Repeat.
Online vs. Offline
Bug algorithms are online planning algorithms.- Planning and execution are interleaved. The robot decides what to do “on-the-fly”.
- Contrast to: Offline planning, in which the robot forms a complete plan before moving.
Bug1
The simplest correct Bug algorithm is called Bug1.- Move toward the goal until reaching an obstacle.
- Turn left and follow the obstacle boundary.
- Follow the entire boundary of that obstacle. Keep track of which point on the boundary is closest to the goal.
- Return to this point, following the obstacle boundary in whichever direction is shorter.
- Repeat until the robot reaches the goal.
Analysis of Bug1
How long a path does Bug1 generate?- $D$: distance from start to goal
- $M$: number of obstacles
- $p_i$: perimeter of obstacle $i$
When does this worst case occur? That is, what
conditions on the start and goal positions and the obstacle
shapes lead to this worst case?Hit points and leave points

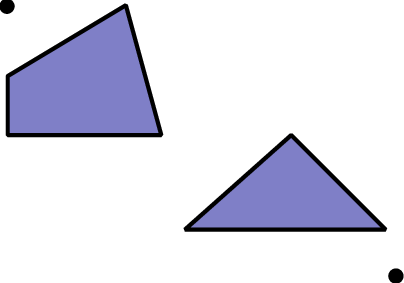

As the robot follows an obstacle boundary, define:- The hit point $H$ is the point at which the robot reached the obstacle.
- The leave point $L$ is the point at which the robot leaves the obstacle.
Bug2
Another, similar algorithm is called Bug2:- Move toward the goal until reaching an obstacle.
- Follow this obstacle until it returns to the line connecting
the start and goal positions.
- If the robot can leave the obstacle toward the goal from this point, and it is closer to the goal than the hit point, then leave toward the goal.
- Otherwise, continue around the obstacle.
- Repeat until the robot reaches the goal.
Analysis of Bug2
How long a path does Bug2 generate?- $D$: distance from start to goal
- $M$: number of obstacles
- $p_i$: perimeter of obstacle $i$
- $n_i$: number of intersection points between obstacle $i$ and the start-to-goal line.

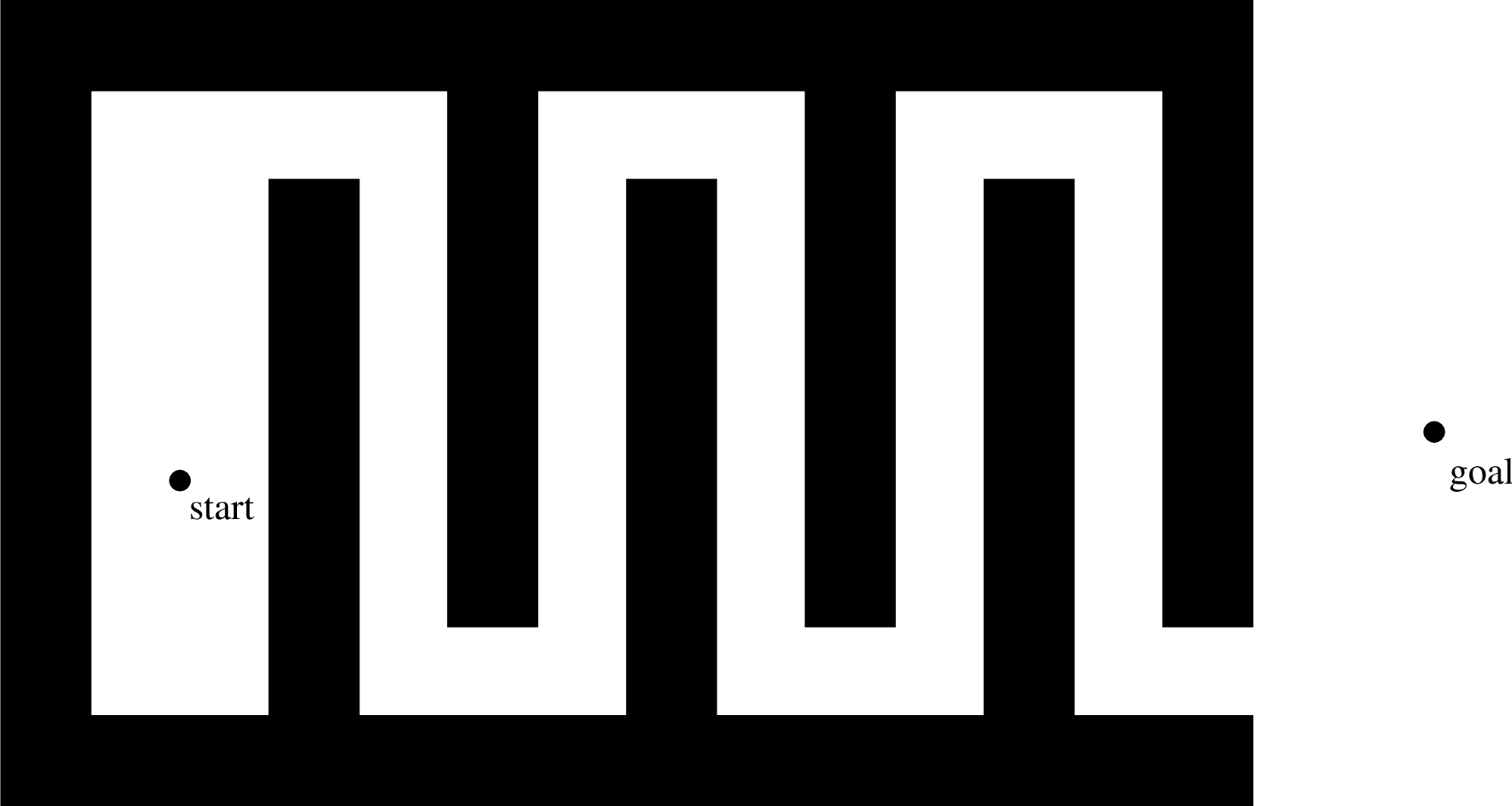

A bad case for Bug 2
Comparison between Bug1 and Bug2
Which algorithm is more “aggressive”? Which one is “conservative”? Which algorithm provides better worst-case performance?- Bug1 searches exhaustively for the best leave point.
- Bug2 is opportunistic, choosing the first suitable leave point it finds.
What if the goal cannot be reached?
What happens if there is no path to reach the goal? Both algorithms can detect this.- Bug1: When the closest point on an obstacle to the goal leads to an immediate collision.
- Bug2: When a complete cycle is made without finding a new leave point.
